AGV Material Transfer System
Custom automated material transfer solutions for factory logistics, production lines and internal material flow, evaluated around load-specific engineering, route planning, workstation integration and production workflow.
Product Visuals
Product Video
Representative AGV material transfer applications, including pallet handling, guided transfer, low-profile platforms and rotary lifting support.

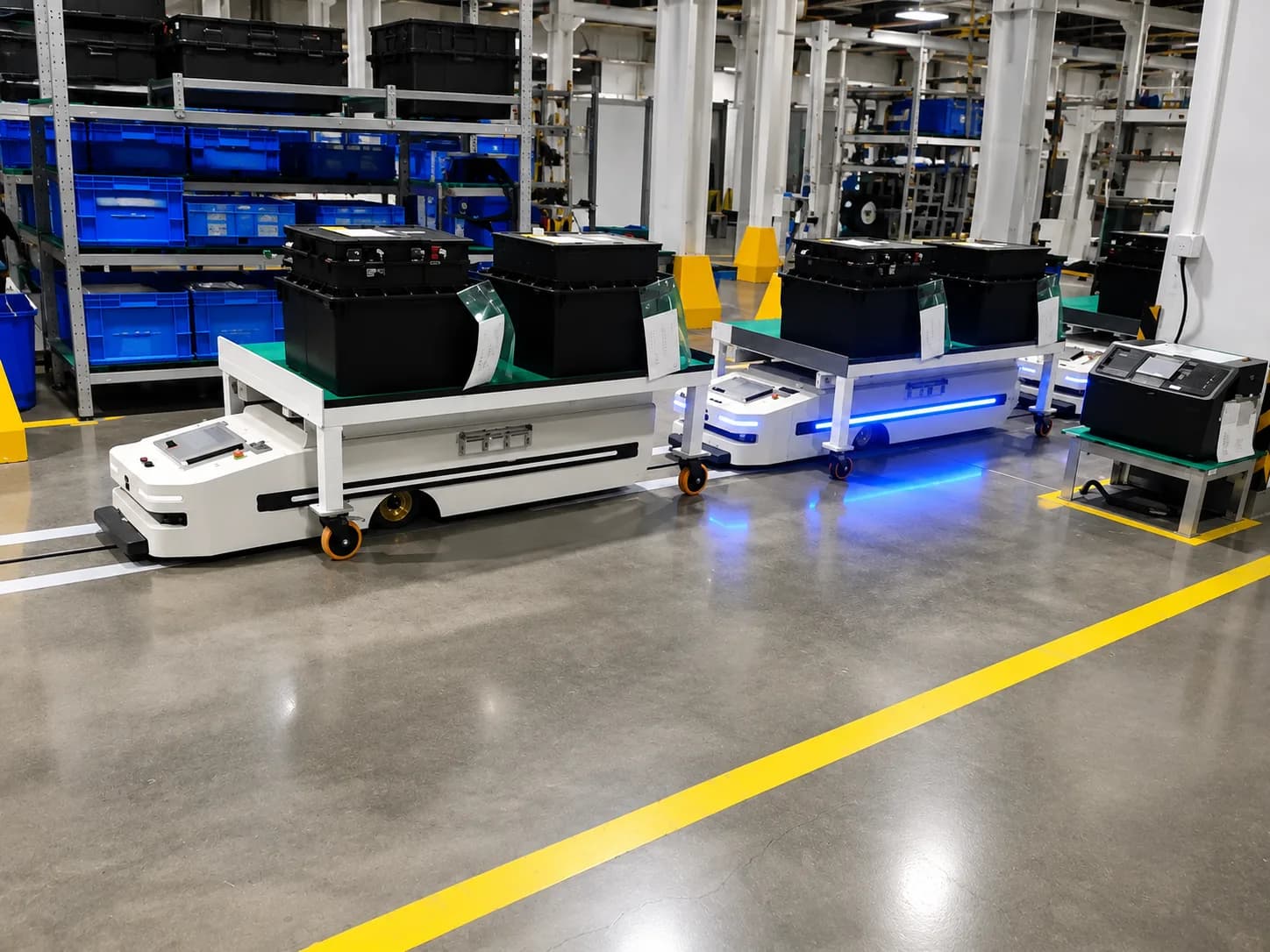

Engineered for factory internal logistics and automated material transfer
AGV material transfer solutions are developed for automated production and in-plant logistics applications where material carriers, pallets or transfer structures need to interface with AGV platforms.
Supporting equipment such as pallet trolleys, low-profile transfer platforms, rotary lifting units and customized carriers can be configured according to the AGV platform, load form, transfer height, docking relationship and workshop logistics process. The final solution is evaluated around the AGV interface, material carrier, workstation layout and project-specific transfer requirements.
Customer Challenge
Manual transport pressure, repetitive handling work, unclear material flow between workstations and special load transfer challenges in production areas.
Engineering Solution
A project-based AGV supporting configuration reviewed around the AGV interface, carrier structure, docking direction, transfer height, workstation interface and production workflow.
Application Result
Supports more organized material flow, reduces repetitive manual transportation, improves consistency of factory logistics and supports production line material supply.
Typical AGV Supporting Configurations
AGV supporting structures are evaluated around the carrier, docking relationship and workshop flow instead of being treated as fixed catalog items.
Material Carrier & Docking Support

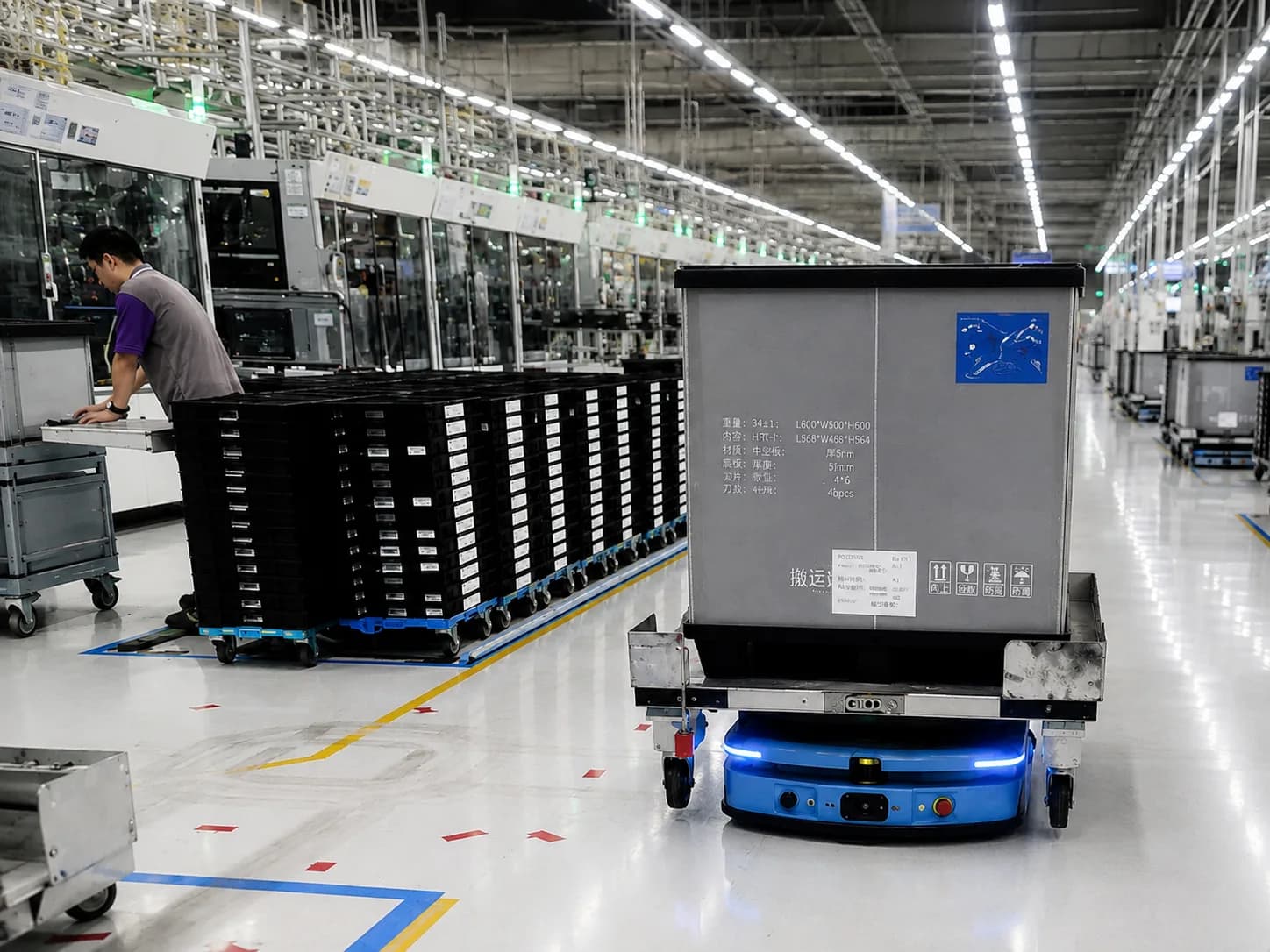

AGV-Compatible Pallet Trolley
- Developed for AGV docking and material handover applications
- Can support pallet, tote-box or dedicated carrier handling

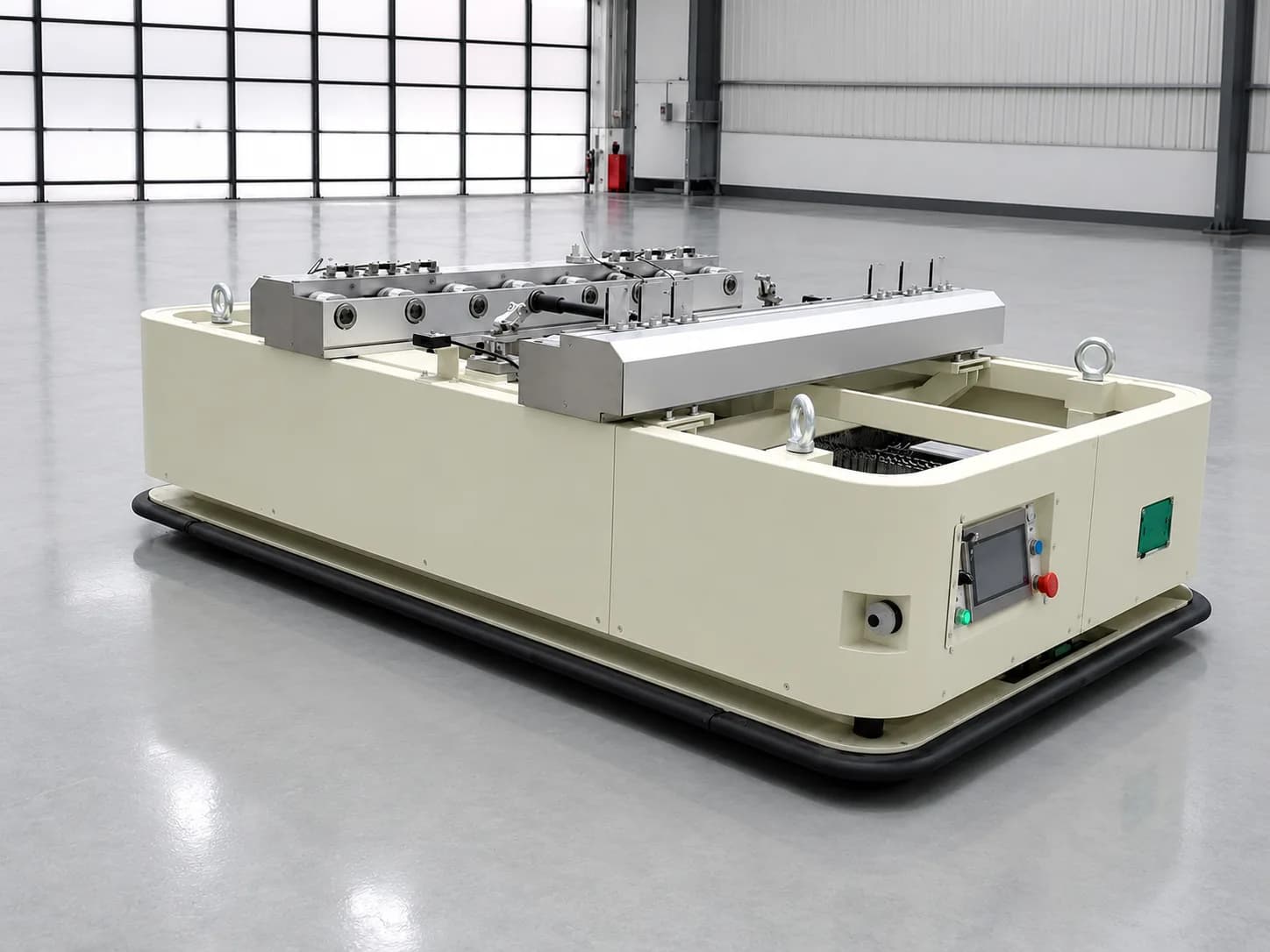

- Low-profile structures can be evaluated according to transfer and docking requirements
- Carrier dimensions and load-support structure can be customized according to the transported material
Rotary & Lifting Transfer Support

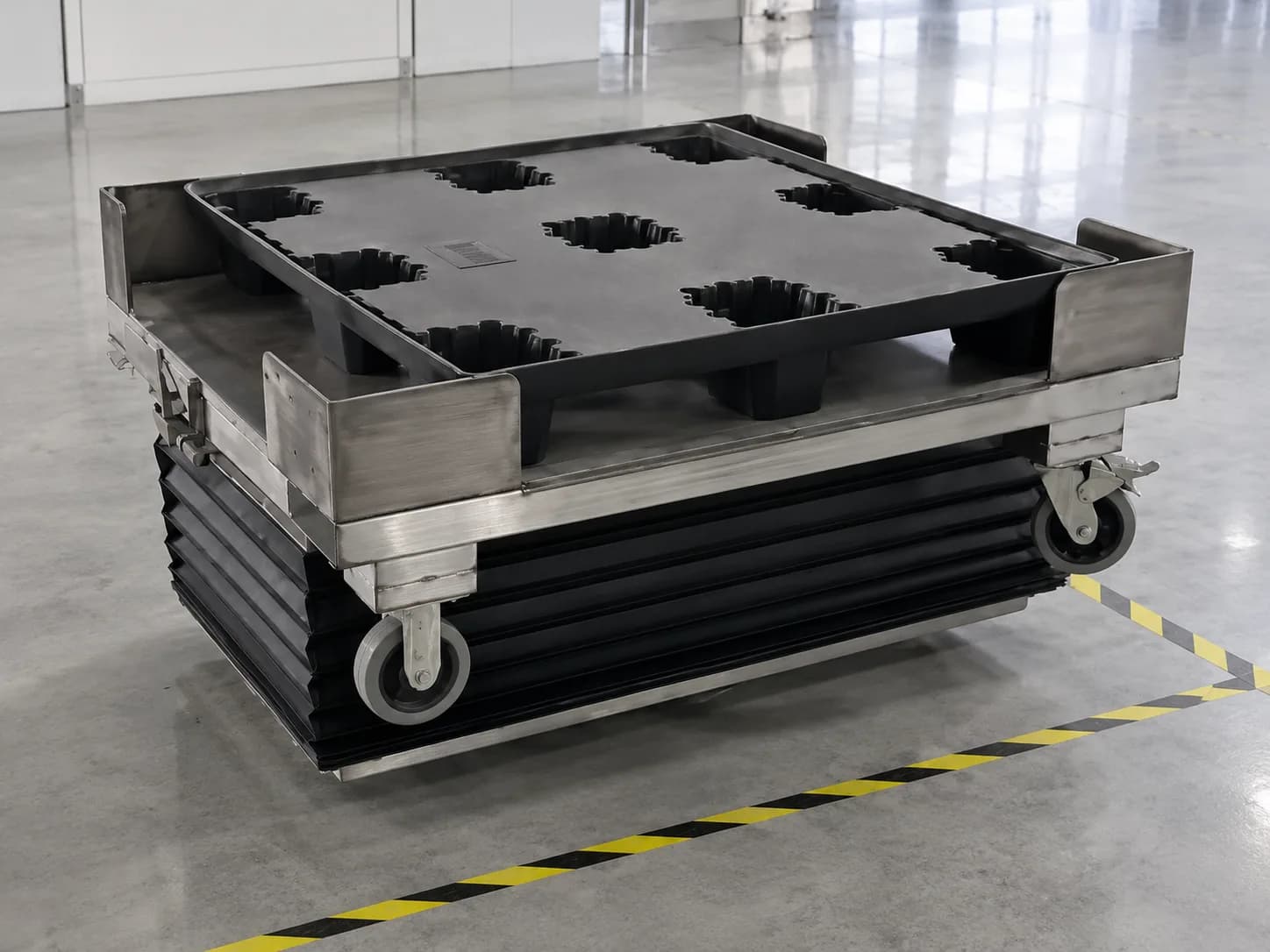

Rotary Pallet Trolley Lift
- Integrates rotary and lifting functions in one supporting unit
- Can be used at AGV docking or logistics transition points
- Suitable for applications involving transfer-height or direction changes
- Structure and interface are developed according to the actual carrier and AGV relationship
Customized AGV Interface Equipment
AGV Transfer Support
- Supporting pallets, trolley bases, carriers and rack structures can be customized
- Can be developed around different AGV platform and docking-interface requirements
- Suitable for production-line and in-plant logistics material-transfer applications
- Supporting structure is evaluated according to the load form, workshop flow and workstation interface
Project Evaluation Information
Final AGV supporting configuration should be evaluated according to the AGV platform, docking interface, transported material, transfer height, workstation layout and project-specific logistics requirements.
AGV Platform Type
- AGV platform form
- Project interface condition
- Site-side connection need
AGV Interface / Docking Form
- Docking interface
- Handover relationship
- Carrier connection point
Docking Direction
- Approach direction
- Handover side
- Station orientation
Transferred Material / Carrier Type
- Pallet
- Tote box or rack
- Dedicated carrier
Part / Carrier Dimensions
- Length and width
- Height range
- Carrier interface
Required Load
- Estimated load requirement
- Load distribution
- Handling frequency
Transfer Height
- Pickup height
- Delivery height
- Height transition need
Rotary Requirement, If Applicable
- Rotation use case
- Direction change
- Station relationship
Lifting Requirement, If Applicable
- Lifting height
- Handover level
- Carrier support condition
Low-Profile Requirement, If Applicable
- Available vertical space
- Low-profile carrier need
- Docking clearance
Workstation / Production-Line Interface
- Line-side interface
- Rack or station connection
- Loading height

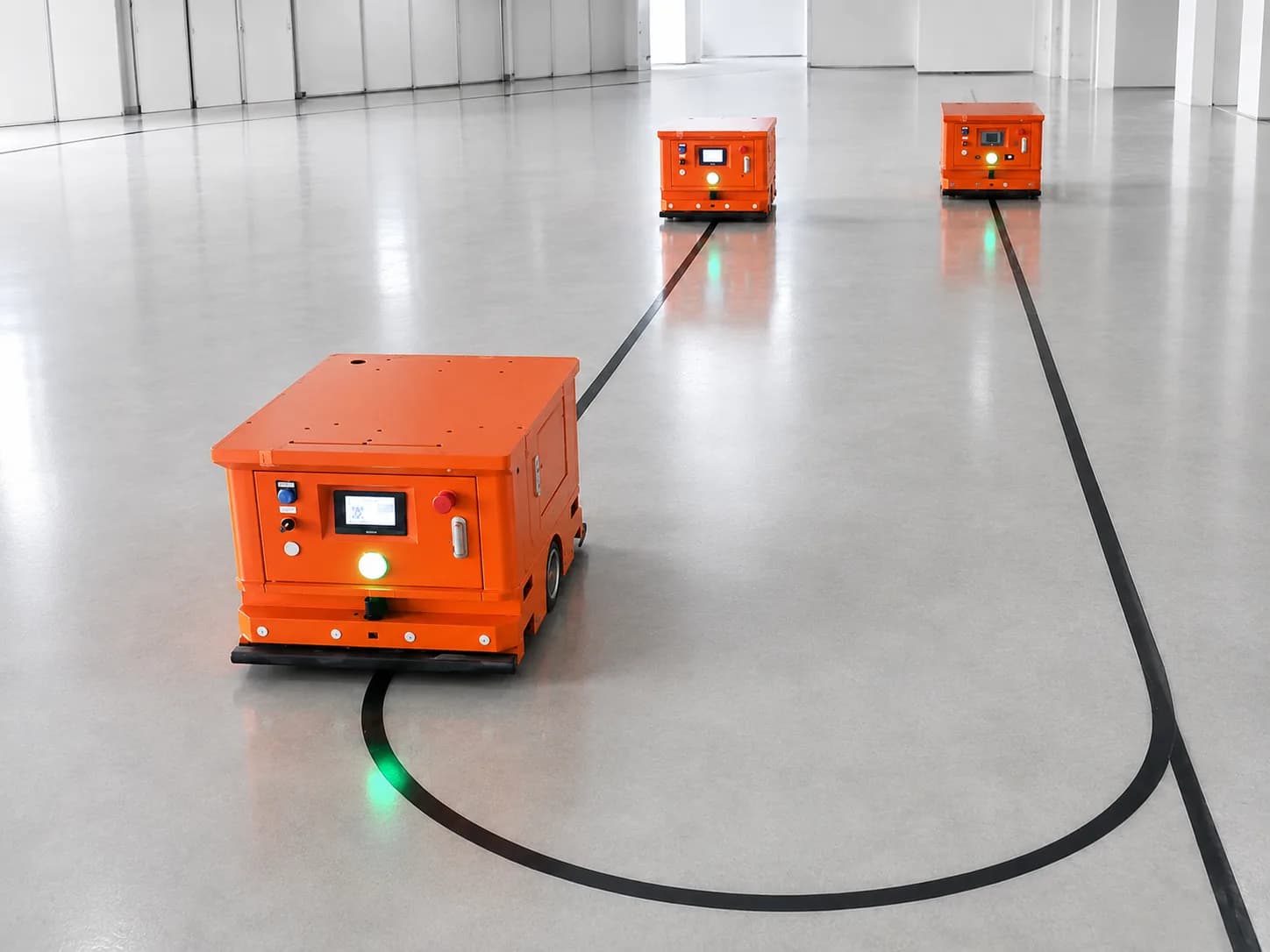

Transfer Route / Workshop Layout
- Factory route
- Route distance
- Workshop layout condition
Carrier / Pallet Customization Requirement
- Carrier size
- Pallet structure
- Supporting frame requirement
Application Environment
- Workshop floor condition
- Available space
- Surrounding equipment
Engineering Evaluation
To propose a suitable AGV supporting configuration, we evaluate:
- AGV platform and interface
- Docking relationship
- Transferred material and carrier type
- Transfer height
- Workstation layout
- Project-specific logistics requirements
Key Features
AGV Interface Evaluation
Docking and supporting structures are developed according to the AGV platform and project interface requirements.
Customized Material Carriers
Pallets, tote-box carriers, trolley bases and supporting racks can be customized around the transported material.
Rotary & Lifting Support
Rotary and lifting functions can be integrated where transfer height or direction changes are required.
Project-Specific Layout Integration
The supporting equipment can be evaluated according to workstation layout, transfer route and logistics process.
Engineering Application Scenarios
Production Line Material Supply
Used in automated production-line material transfer where carriers need to connect logistics points and line-side stations.
Workstation-to-Workstation Transfer
Applied where work-in-process materials move between workstations and the material handover interface needs project evaluation.
Pallet and Tote-Box Transfer
Supports project evaluation for pallets, tote boxes, racks or other carriers when the handling interface needs to be coordinated.
AGV Docking Support
Used where material carriers, pallet trolleys or transfer structures need to be evaluated around AGV docking requirements.
Transfer-Height and Rotary Applications
Used where transfer-height transition or rotary transfer functions are required in a logistics handover process.
Project Process
Requirement Review
Understand load type, carrier dimensions, transfer task, production process and logistics improvement target.
Factory / Route Evaluation
Review factory route, pickup and drop-off points, operating environment, workstation interface and traffic conditions.
AGV Solution Design
Develop the AGV platform direction, load handling interface, route concept and integration requirements for confirmation.
Integration & Verification
Review interface details, route operation and production workflow before manufacturing and project execution.
Delivery & Project Support
Provide project communication, export coordination and delivery support after the AGV solution direction is confirmed.
Why Choose Our Engineering Approach
Requirement Analysis
We review load, route, workflow, material supply rhythm and factory logistics goals before proposing an AGV direction.
Mechanical Design
AGV platform direction, load interface and workstation connection are configured according to project conditions.
Manufacturing & Assembly
Fabrication, assembly and practical project considerations are coordinated around the confirmed AGV design direction.
Delivery Support
Overseas communication, packing coordination and delivery planning can be supported for AGV material transfer projects.
FAQ
Can the AGV system be customized for different loads?
Yes. Load type, dimensions, carrier interface and transfer workflow can be reviewed before confirming a suitable AGV direction.
What information is required to evaluate an AGV project?
Please share load type, load dimensions, estimated payload direction, route layout, pickup and drop-off points, workstation interface and operating environment.
Can the AGV work with production lines or workstations?
Production line and workstation connection can be evaluated around interface height, docking direction, material flow and surrounding equipment.
Can different transfer routes and pickup points be configured?
Yes. Routes, pickup points and delivery points can be reviewed according to the factory layout and internal logistics workflow.

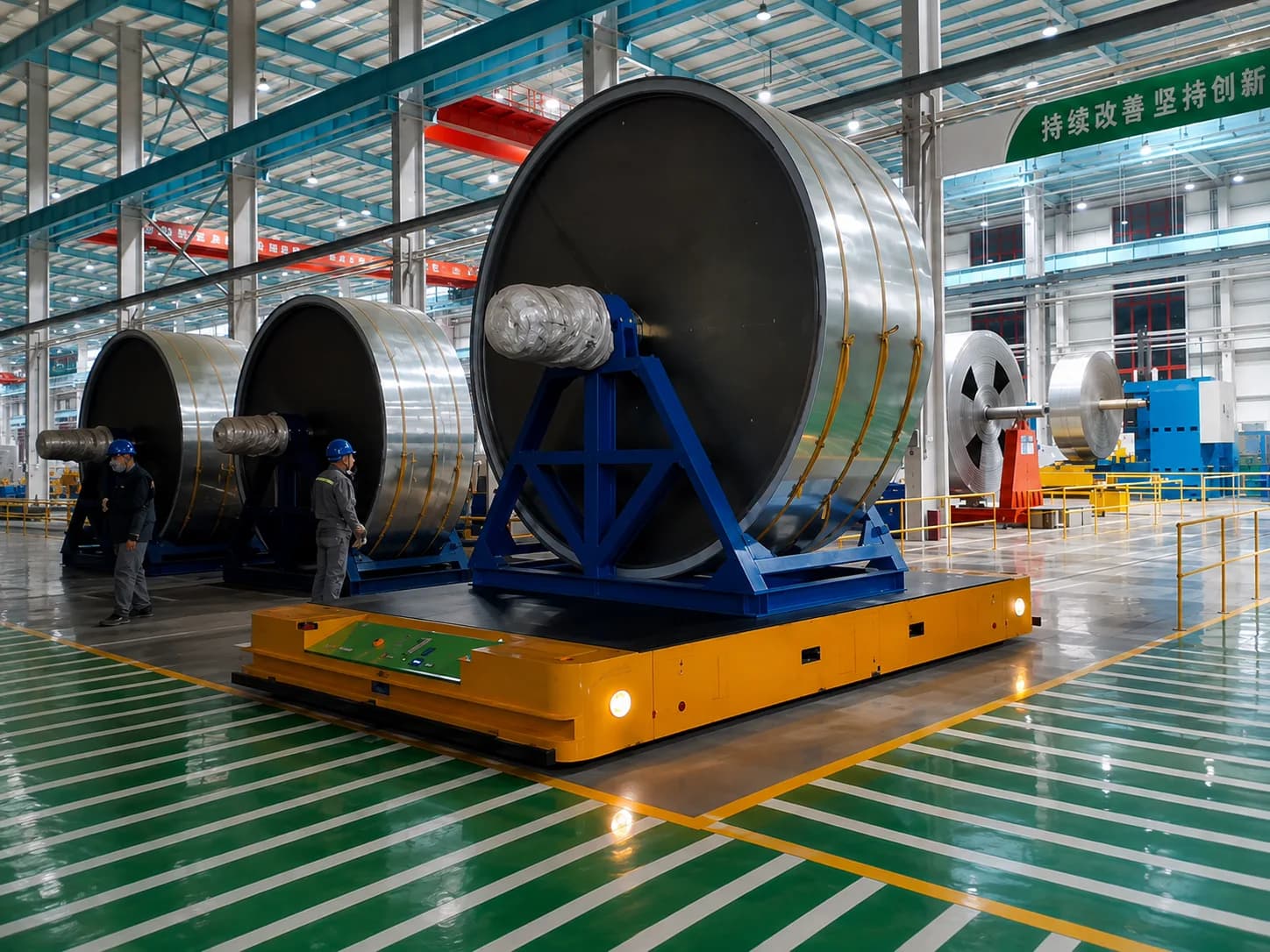

Can the AGV solution be designed for special or heavy loads?
Special or heavy load applications can be evaluated according to load form, route condition, handling interface and project requirements.
Share Your AGV Material Transfer Project Requirements
Provide load type, load dimensions, route layout, pickup and drop-off points, workstation interface, operating rhythm or site photos. Our engineering team will review your factory logistics project and suggest a suitable AGV material transfer direction.
